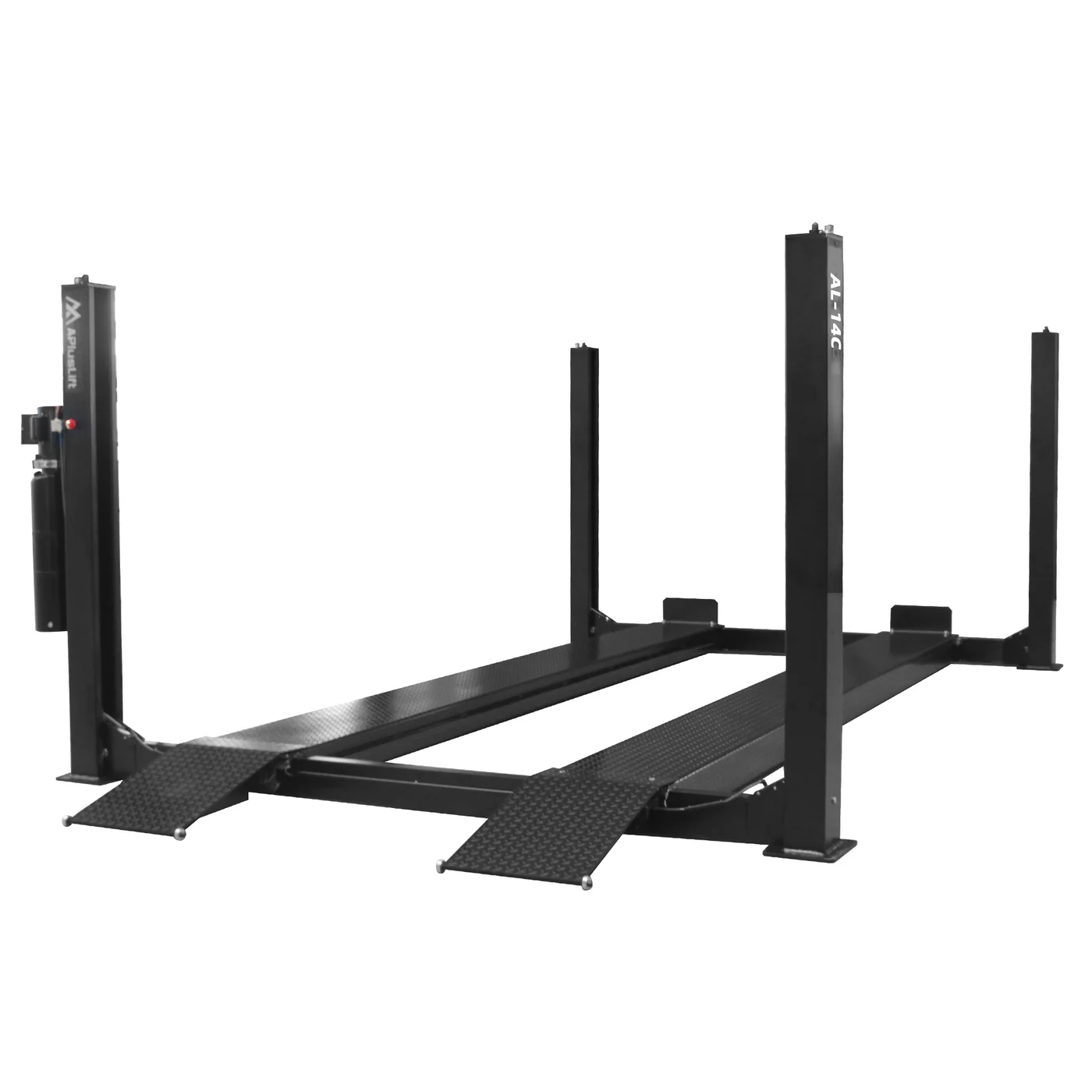

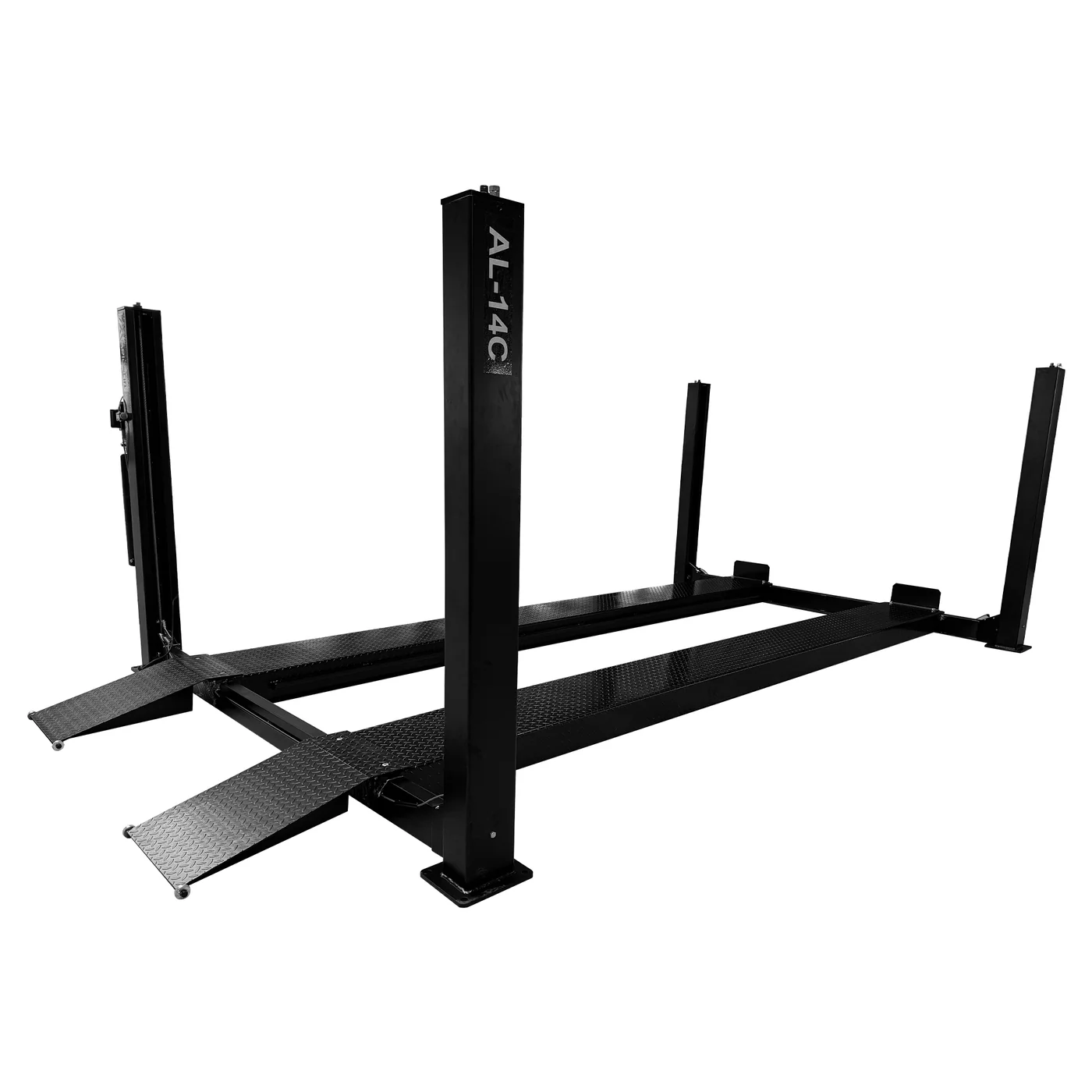

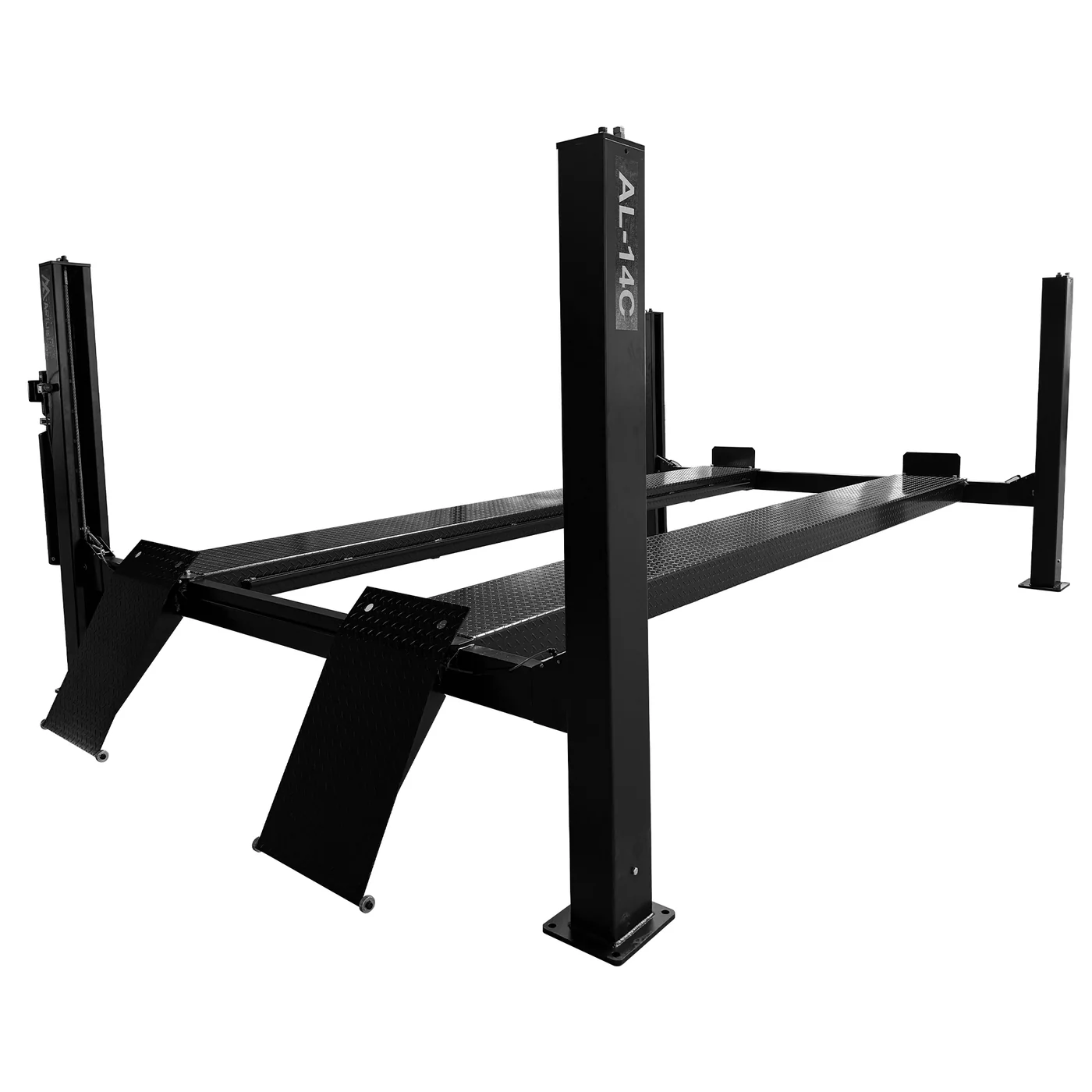

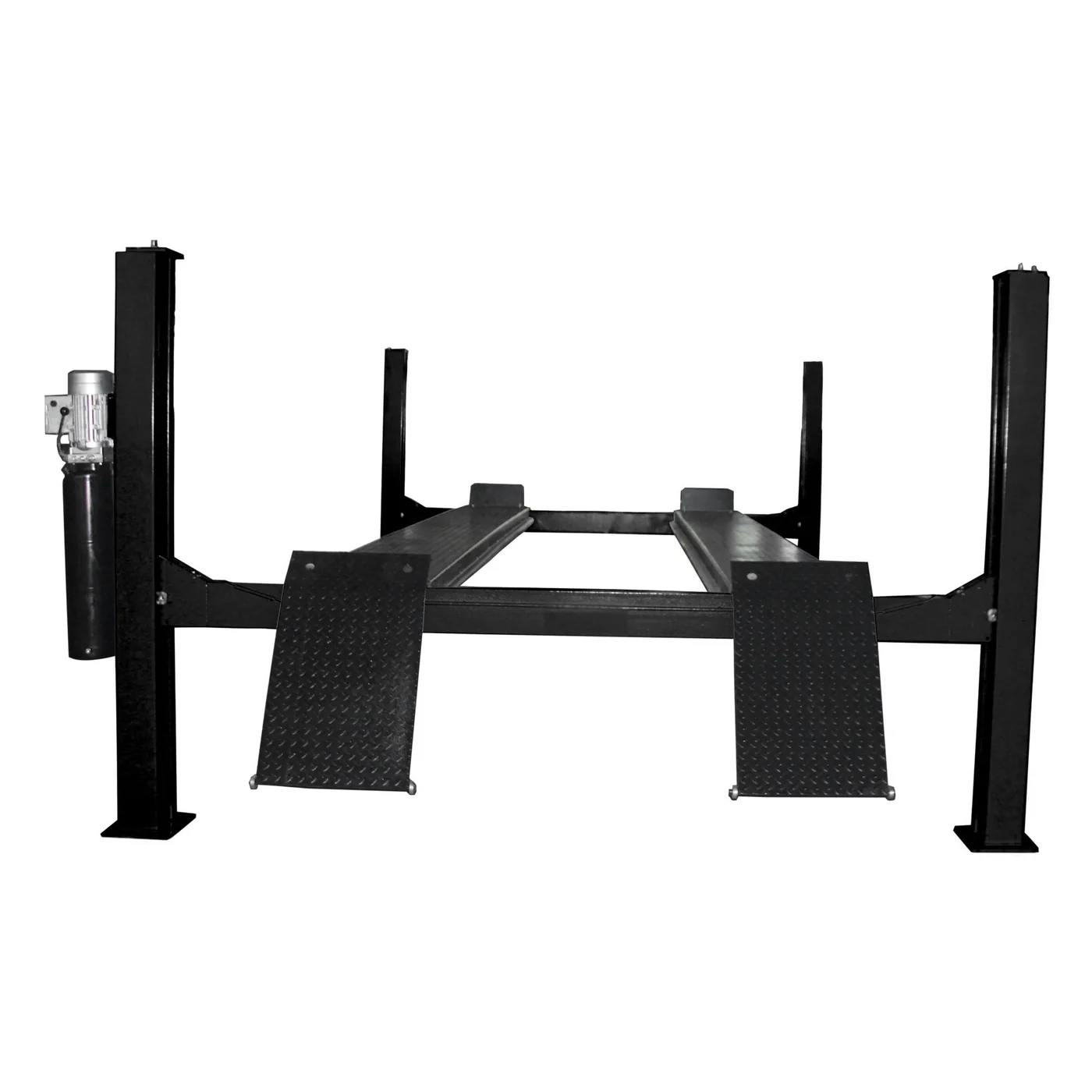

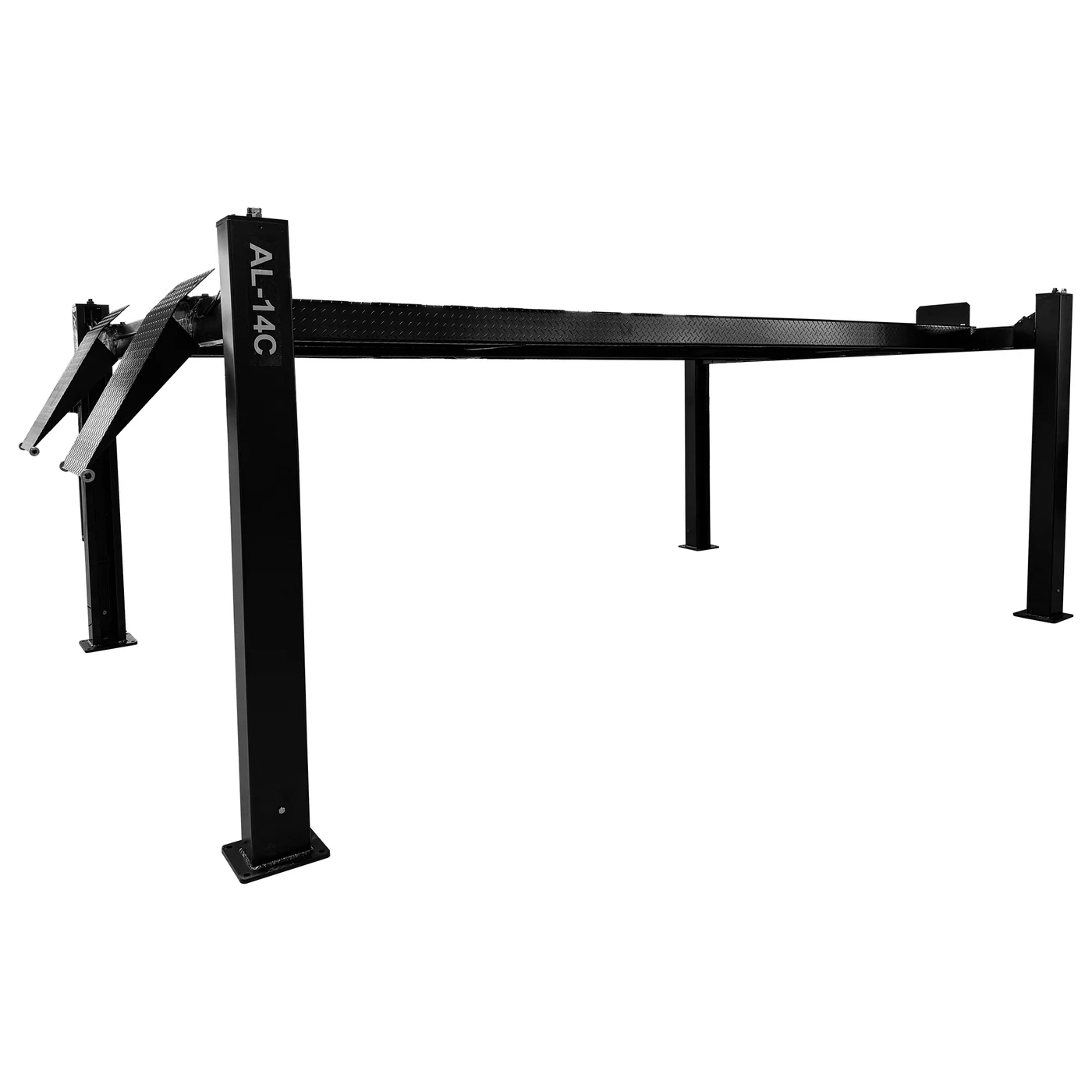

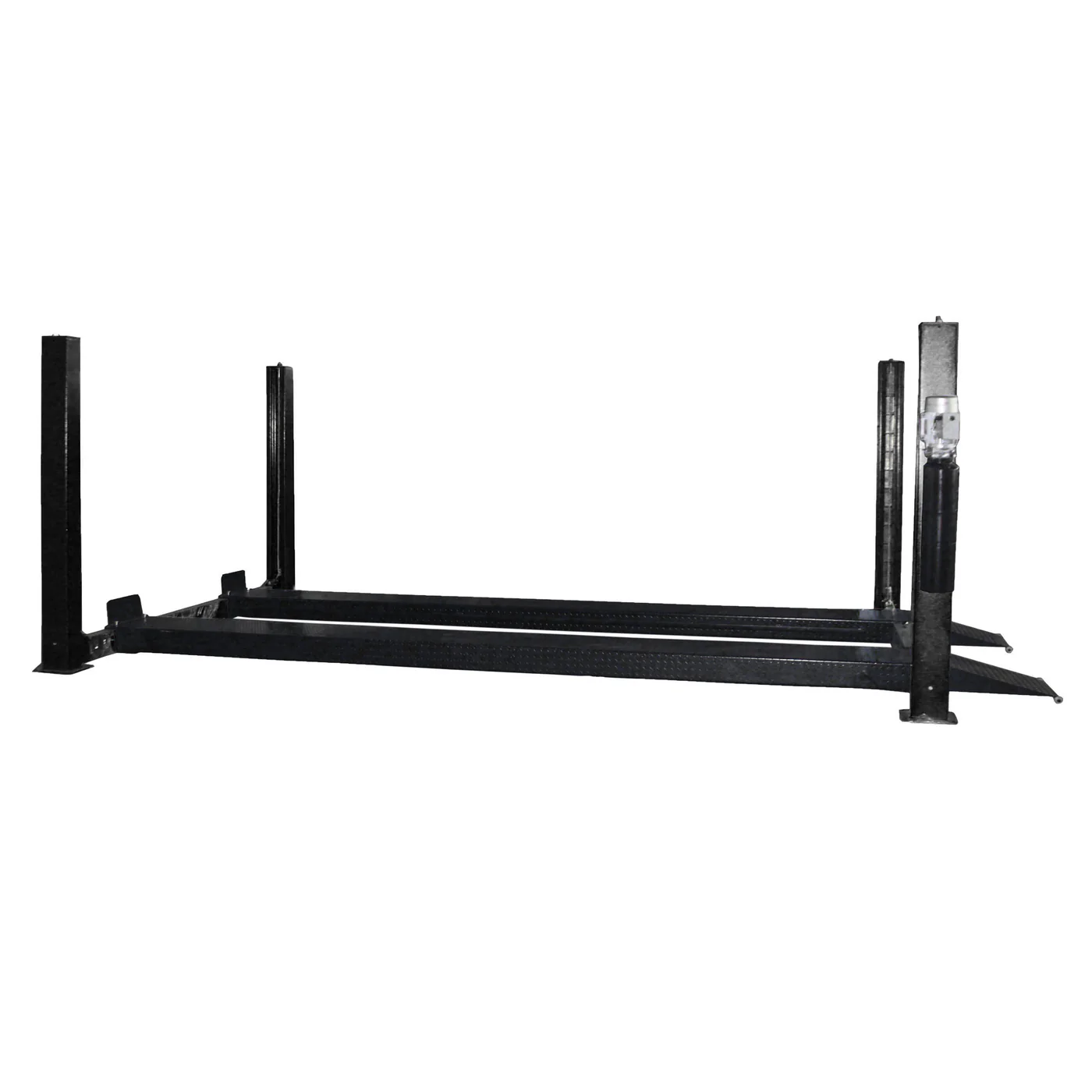

APlusLift 14,000LB 4-Post Heavy Duty Lift AL-14C
Only a few items left at this price!
US$ย 4,614.35
US$ย 0
Industry leading 3 YEAR WARRANTY (a $499 value!)
Free Approach Ramps Included
Time-Tested Car Lift Model for 30 Years
Powder Coated Finish with Superior Corrosion Resistance
The APlusLift AL-14C (HW-14AL) 4-Post 14,000LB Lift is designed and built to commercial-grade standards and will provide many years of service. It is constructed with high-quality materials, precision workmanship, and features a powder-coated finish for superior corrosion resistance.

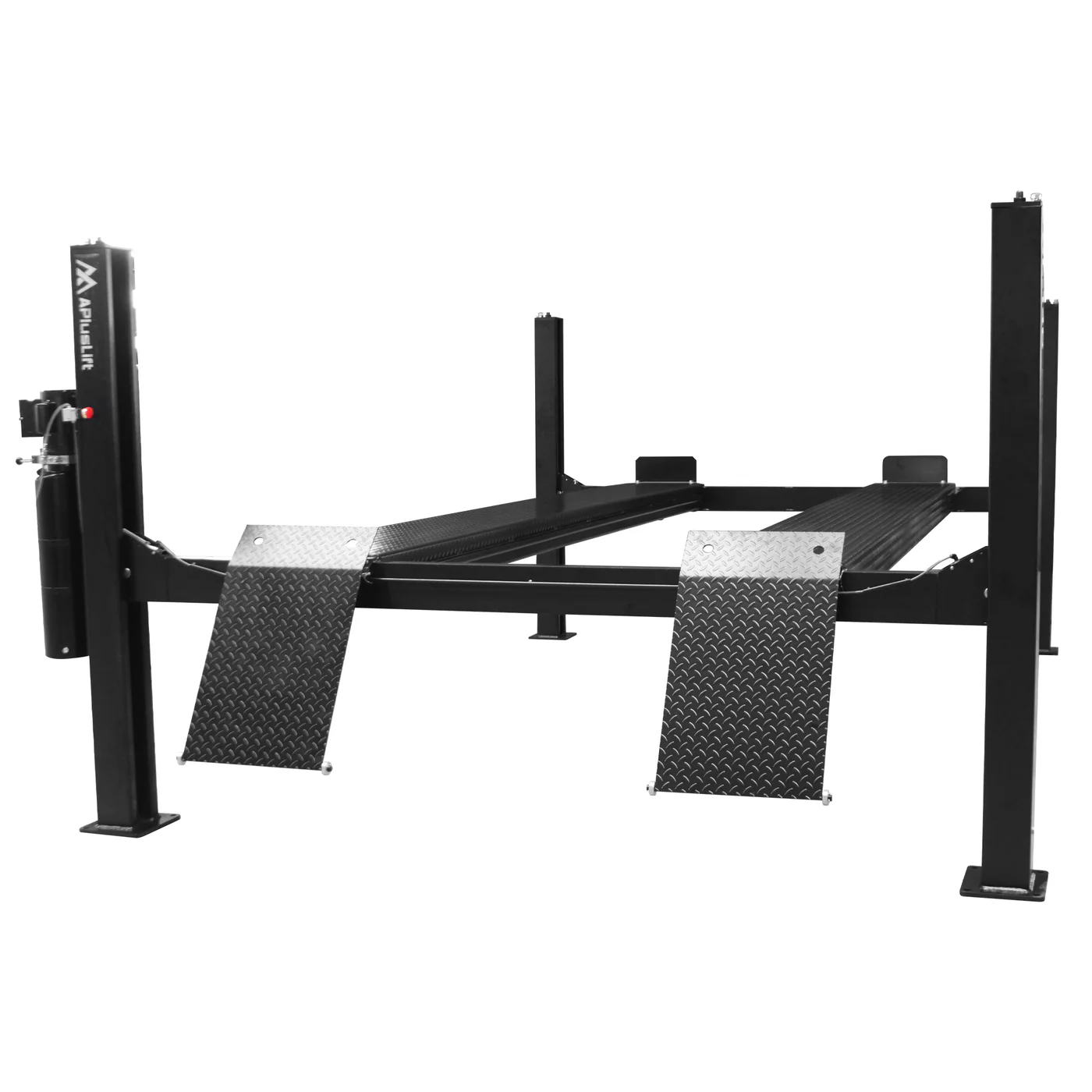

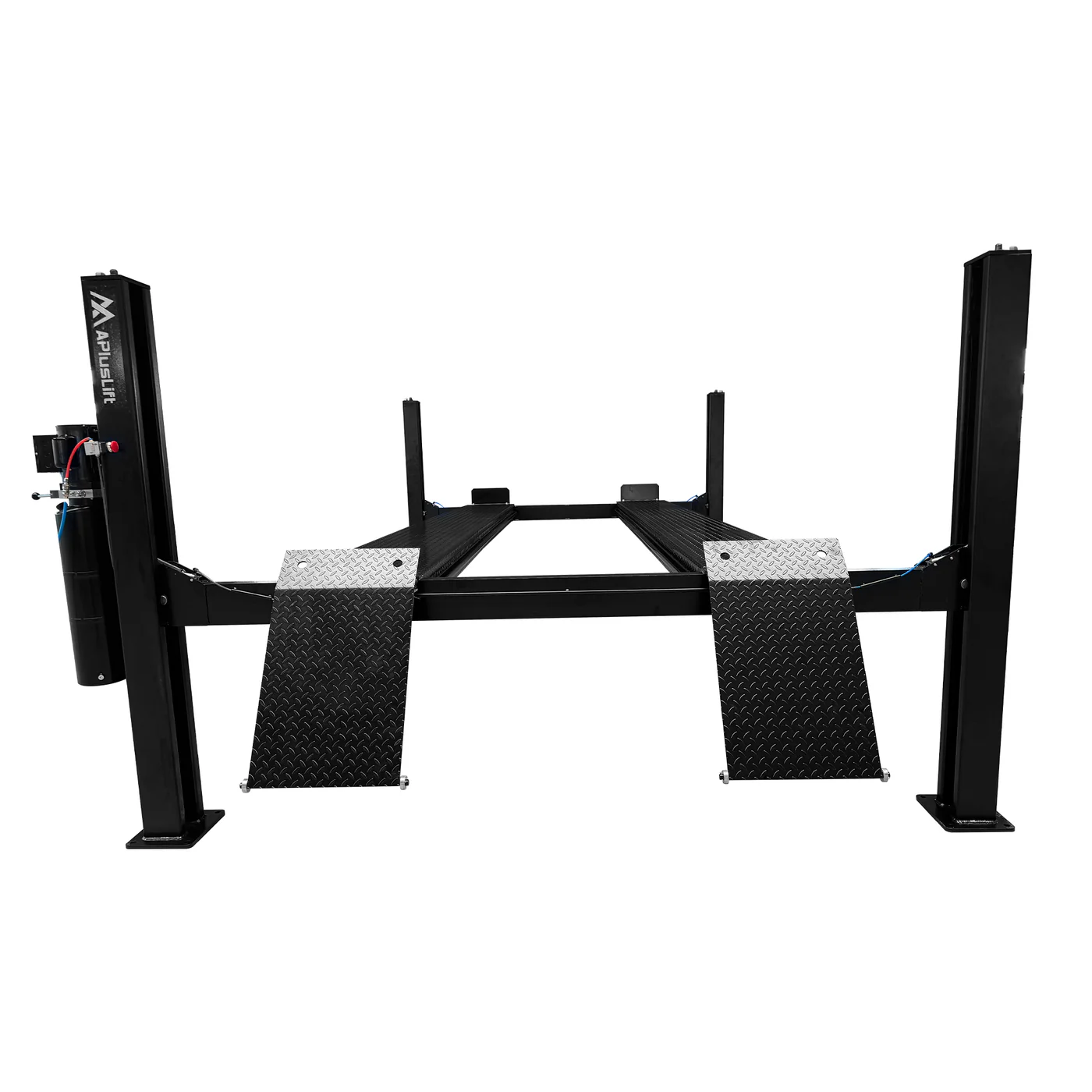

The AL-14C package includes two removable approach ramps.
Free shipping (delivery time approx. 25 days) to the lower 48 states with forklift (or similar) on-site, or free pickup at a nearby terminal. Car lifts require an on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Warehouse Pickup Locations (Contact Us for $500 Discount): Charlotte (NC), Chicago (IL), Dallas (TX), Jacksonville (FL), Kansas City (MO), Las Vegas (NV), Mobile (AL), Mansfield (OH), Portland (OR), Tacoma (WA), Virginia Beach (VA), and Watsontown (PA).
Specifications & Features
Model: AL-14C (HW-14AL)
Warranty: 3 Years (36 Months)
Lifting Capacity: 14,000 LB
Usage: Parking / Storage / Service
Finish: Powder Coated Finish with Superior Corrosion Resistance
Overall Length: 243 1/2"
Overall Width: 134 3/8"
Overall Height: 83"
Drive Through Width: 106 9/32"
Lifting Height: 77 11/32"
Clearance Under Runway: 70 27/32"
Runway Size: 203 15/16"L x 20"W
Width Between Runways: 43" Inside-Inside, 83" Outside-Outside
Runway Gauge Steel: 15/64"
Column Cross Section: 7 11/16"L x 6"W
Removable Approach Ramp Size: 27 31/32"L x 20 3/32"W
Lock Positions: 10
Lifting Time: 100 seconds

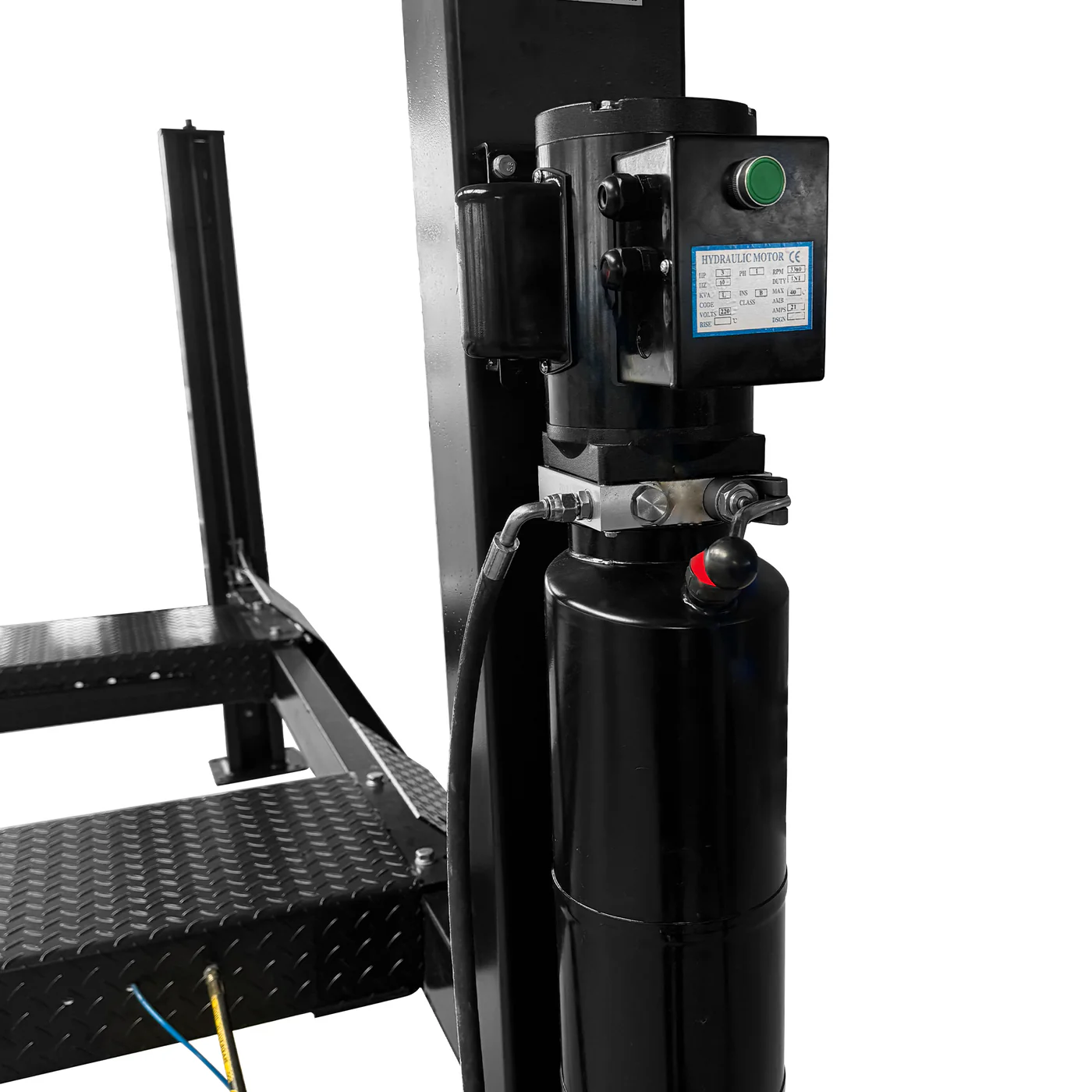

Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker)
Hydraulic Oil: 4.3โ5 gallons AW32/AW46 (Not Included)
Concrete Thickness: 4" 3000psi
Shipping Weight: 3,000 LB
Shipping Package Size: 214"L x 25"W x 31"H

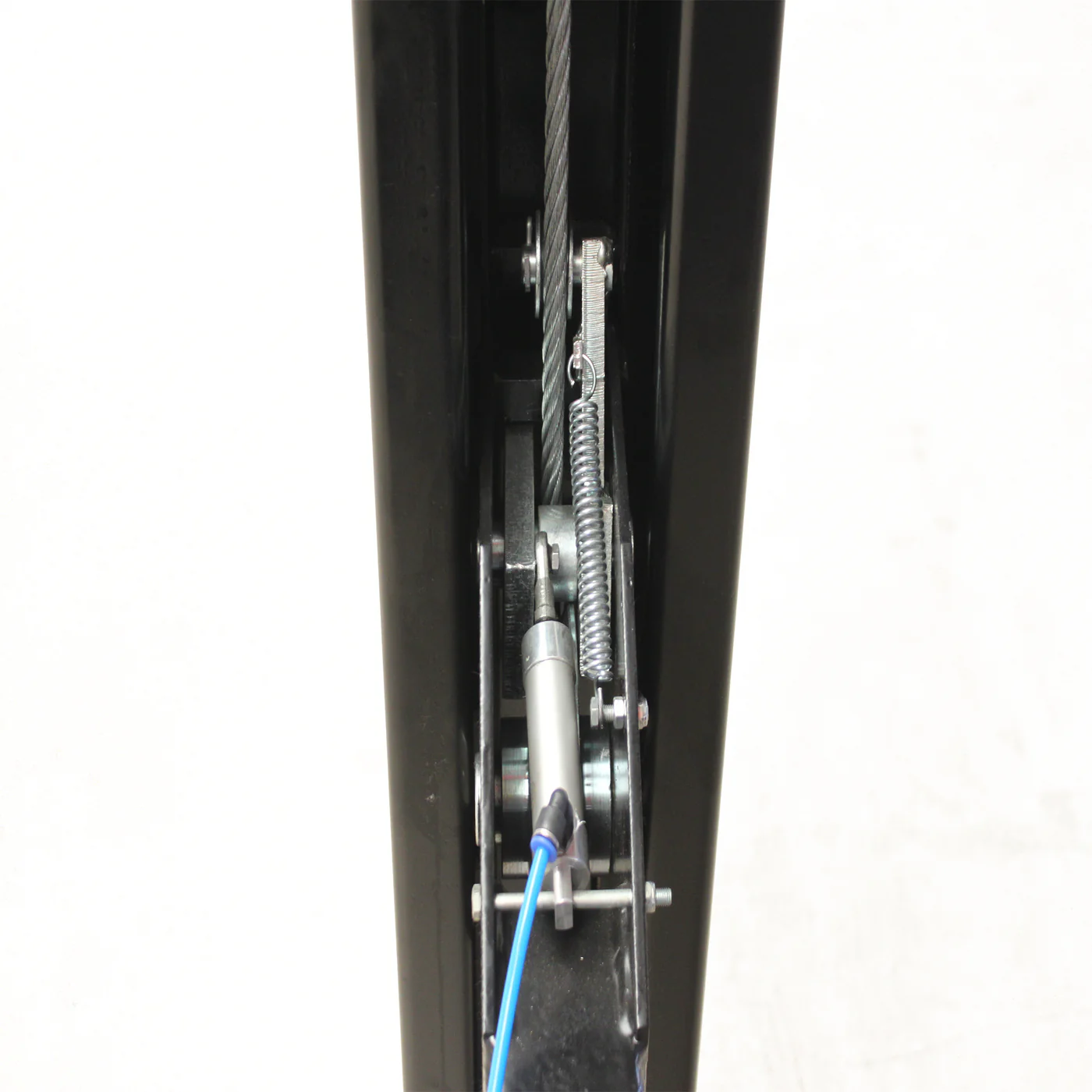

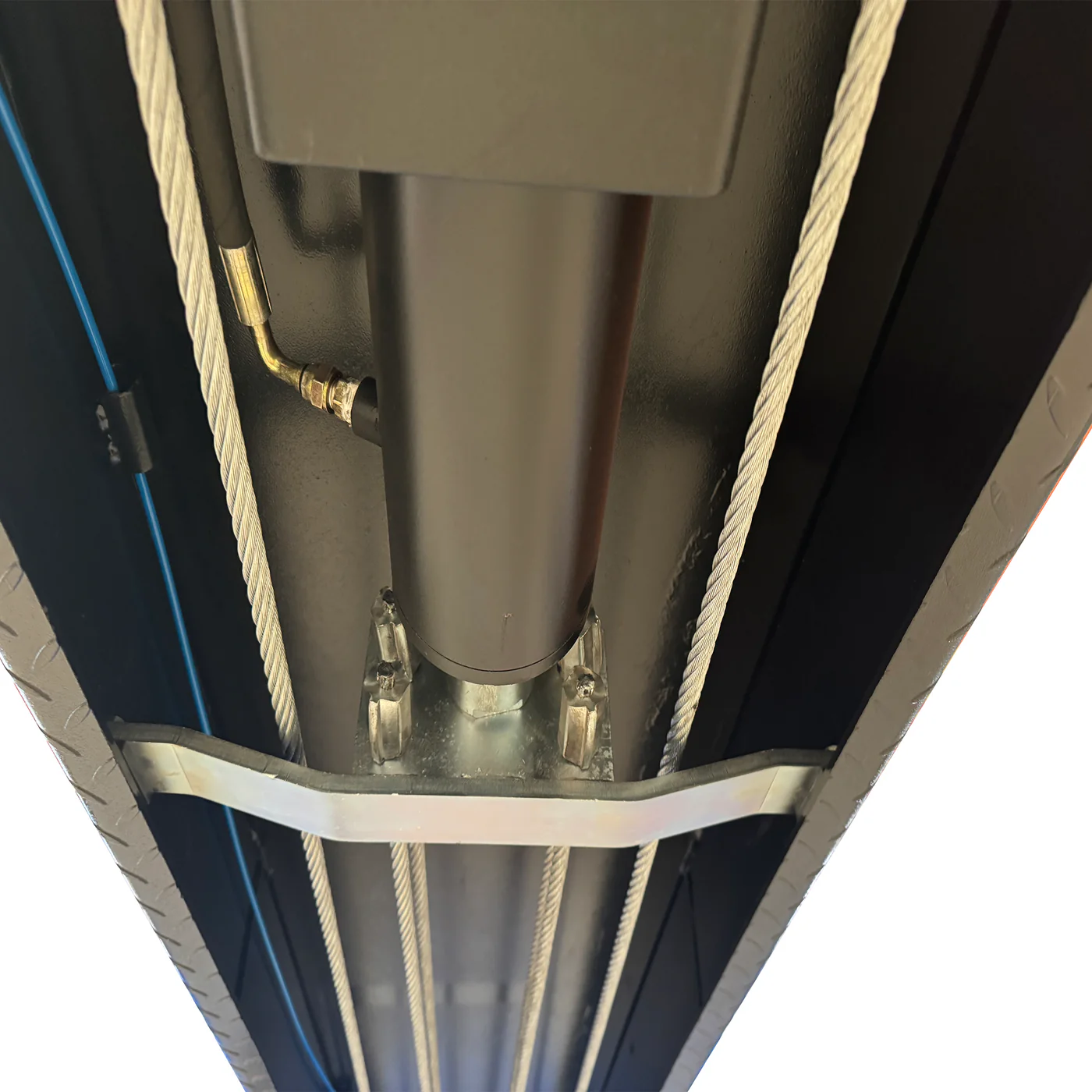

Cable: Heavy duty 15/32" diameter cables to reduce stress during synchronization and increase cable life
Parts Included: 2 Removable Approach Ramps
